April 14, the new GB GB2099.3-2015 and GB2099.7-2015 formal implementation. According to the requirements of the State Commission, the new incorporation of the scope of compulsory certification of the converter products and with the national standard combination hole extension cord socket products, since April 14, did not obtain a mandatory product certification and not marked mandatory products The certification mark shall not be manufactured, sold, imported or used in other business activities.

一、First, the new national standard April 14 formally implemented

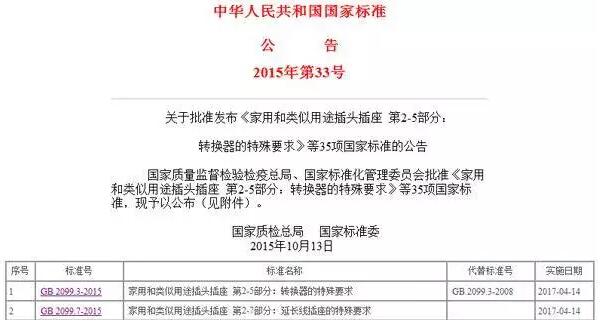

      October 13, 2015, China issued a new national standard GB2099.3-2015 "household and similar plugs and sockets Part 2-5: special requirements of the converter" and GB2099.7-2015 "household and similar plugs Sockets Part 2-7: Extension of special requirements for line sockets ".

On request, the two standards will be implemented on April 14, 2017. So, what are the new changes in the new national standard?

1. Set the protection door to prevent children from touching
      The biggest change in the new standard is to increase the requirements for setting the protection door. In line with the new standard requirements of the plug-in board products must be with a protective door, and the old standard is not mandatory to provide products with a protective door. The use of products with protective doors will be safer, especially in the prevention of accidental electrocution of children, the protection of the door plays a very crucial role.

2, wire thickening, improve the current carrying capacity
      The new national standard on the plug board conductor cross-sectional area has been improved in line with the new standard requirements of the plug-in board products to improve the cross-sectional area of the power cord, power line current carrying capacity is greater, the product more secure. The new standard stipulates that the rated current of 10A plug-in board, the minimum wiring cross-sectional area of 1.0mm2 (wiring length of more than 5 meters when the 1.5mm2), and in line with the old standard requirements of the product wiring cross-sectional area is usually 0.75mm2; Rated wire for the 16A plug-in board, the minimum wiring cross-sectional area of 1.5mm2 (wiring length of more than 5 meters when the 2.5mm2), and in line with the old standard requirements of the product wiring cross-sectional area is usually 1mm2.

3, fire performance improved
      The new national standard on the plug board insulation material to increase the burning duration of 30 seconds of the needle flame test items, requiring flame flame and outlet contact 30 seconds after the ignition, or 30 seconds after the ignition automatically extinguished to improve the insulation material Of the flame retardant properties.

Second, these products need mandatory CCC certification

      On the production of new national standard plug board enterprises, but also improve the industry access threshold.

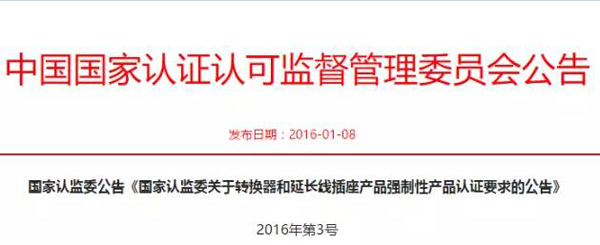

      The State Certification and Accreditation Administration in January 2016 issued the third announcement, a clear converter and extension cord socket products mandatory product certification requirements, the new products included in the scope of mandatory certification, since April 14, 2017, did not get Mandatory product certification and not marked with a mandatory product certification mark, shall not be manufactured, sold, imported or used in other business activities.

According to the announcement:

1, "mandatory product certification implementation rules circuit switch and protection or connection with electrical equipment (electrical accessories)" (No.: CNCA-C02-01: 2014) household and similar plug and socket certification according to the standard increase GB 2099.3 and GB 2099.7 The
(Hereinafter referred to as the old standard) to GB 2099.1, GB 2099.7 and GB1002 / GB1003 (hereinafter referred to as the new standard), the scope of certification has been in accordance with the standard by GB 2099.1 and GB1002 / GB1003 (hereinafter referred to as the old standard) Some GB2099.1 in the wire lengthened components on the basis of an increase with the national standard combination hole (commonly known as small five holes) extension cord socket (wire lengthened components). Converter products (with foreign standard plugs or sockets except) is a new product into the scope of compulsory certification, certification based on the standard GB 2099.1, GB 2099.3 and GB1002 / GB1003.

2. For the extension of the line socket (wire extension components), has been mandatory certification of the old standard, the certificate holder should be certified to the designated certification body based on the standard change of the application; new certification application and certification based on the standard change application Please refer to the "Notice on Mandatory Product Certification Based on the Relevant Requirements at the time of revision of the standard" (No. 4 Notice 2012).

3. For the new converter products (with the exception of foreign standard plugs or sockets) and the extension cord sockets (wire lengthened components) with national standard combination holes for the new scope of compulsory certification, since April 14, 2014 Day, without obtaining a mandatory product certification and not marked with a mandatory product certification mark, shall not be manufactured, sold, imported or used in other business activities.

4. The laboratory shall, in accordance with the "Announcement on Posting the Further Measures to Promote the Reform of the Examination and Approval System for the Implementation of the Mandatory Certification Authorities" (No. 34 Notice of 2015) requires the improvement of the "one-stop" testing service capability, Products and the corresponding standards after the designated, can bear the relevant testing business.

Optional tips:

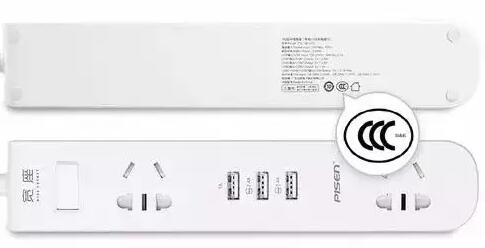

      Meet the new standard requirements, access to CCC certification of the five-hole plug-in board products not only in the plug and power line marked with CCC certification mark, the socket body will also be marked with CCC certification mark, as shown below.

     Compliant with the old standard does not have a CCC certification certificate of the five-hole plug-in board products only in the plug and power line marked with CCC certification mark, and in the socket body is no CCC certification mark.
